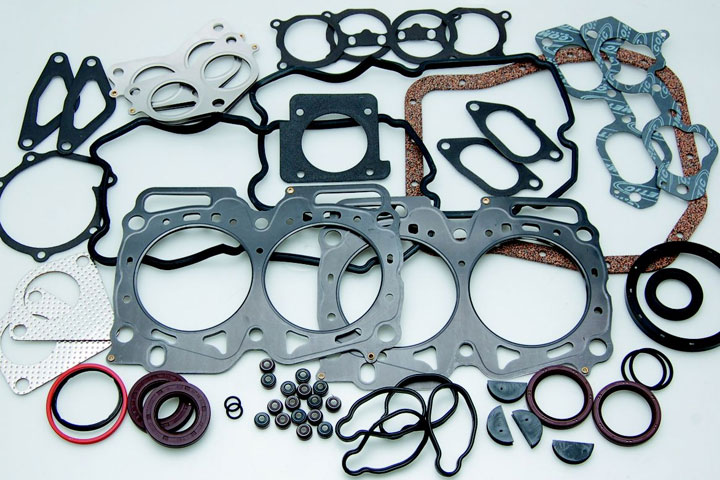

Gasket

A gasket is a mechanical seal which fills the space between two or more mating surfaces, usually to prevent escape from or into the joined objects while under compression. It is a deformable material that is used to generate a static seal and maintain that seal below many operating conditions in a mechanical assembly. They are usually manufactured from a variety of materials, including rubber, cork or paper, metal, copper, and foam. This elastic element can be used for a broad scope of purposes due to its functionality. These include anti-vibration, packaging, hygiene, noise and sound reduction, and most importantly, its most common use, sealing.


      Some of Our Specialities that make us a profitable Business Partber for our clients are :

    • ☆ Customer focused approach
    • ☆ Superior quality products
    • ☆ Timely deliverices
    • ☆ Customize Size & Specification
    • ☆ Competitive Pricing

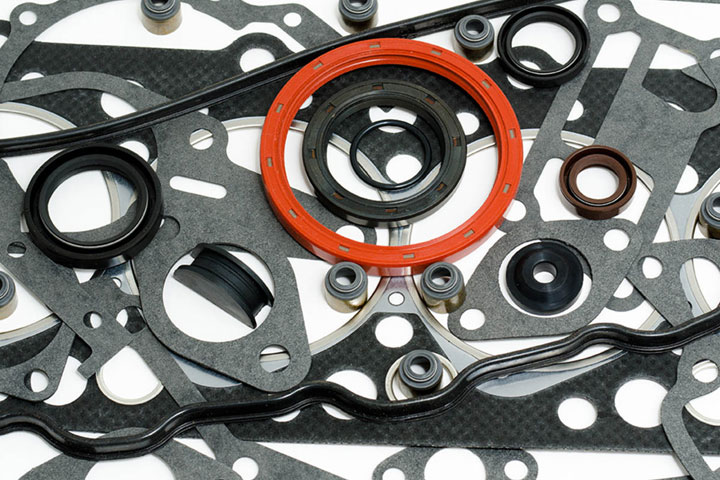

Different Types of Gaskets

ASME B16.20 SPIRAL WOUND GASKET
SS SHIM INSERTED GRAPHITE GASKET
ASME B16.20 CAM PROFILE GASKET
ASME B16.20 GROOVED GASKET
ASME B16.20 RING TYPE JOINT GASKET
ASME B16.21 RUBBER GASKET
NEOPRENE GASKET
CHLOROPRENE GASKET
SPIRAL WOUND GASKET
RING TYPE JOINT GASKET
SPIRAL WOUND R TYPE GASKET
FI PUMP GASKET
SPW INNER AND OUTER GASKET
METALLIC GASKET
INSULATION KIT VCS TYPE GASKET
JACKETED GASKET
CUT GASKET
CORK GASKET
NEOPRENE CORK GASKET
SOLID METAL COPPER RING GASKET
OIL GASKET
WATER PUMP GASKET
PAPER GASKET
INSULATION KIT GASKET

ASME B16.20 Gasket (Fasteners) Specification, Grade, Size & Materials :-

Specification of Gaskets
Types of Gasket
ASME B16.20 Spiral Wound Gasket exporter, EN 1514-2 Spiral Wound Gasket exporter, ASME B16.20 Type R Ring Gasket exporter, ASME B16.20 Metal Jacketed Gasket exporter, ASME B16.21 Non-Metallic Gasket exporter, ASME B16.20 Ring Type Joint Gasket exporter, ASME B16.20 Camprofile Gasket exporter, ASME B16.20 Grooved Gasket exporter, ASME B16.21 Rubber Gasket exporter.
Gasket Sizes
Gaskets are available from 1/2 NB – 24 NB
Gasket Standards
ASME B16.20 Gaskets, ASME B16.21 Gaskets
ASME B16.20 Stainless Steel Gasket
Stainless Steel 304 Gasket, Stainless Steel 316 Gasket, Stainless Steel 347 Gasket, Stainless Steel 410
Other Materials
Low Carbon Steel Gasket, Carbon steel Gasket, 4 – 6% Chrome 1/2% Moly Gaskets, 20Cb-3(Alloy 20 Gasket), Hastelloy B2 Gasket, Hastelloy C276 Gasket, Incoloy 800 Gasket, Inconel 600 Gasket, Inconel X750 Gasket, Monel 400 Gasket, Nickel 200 Gasket, Titanium Gasket
Outside Diameter
The gasket outside diameter tolerance for NPS 1⁄2 through NPS 8 is ±0.8 mm; for NPS 10 through NPS 24, +1.5 mm, −0.8 mm.
Inside Diameter
The gasket inside diameter tolerance for NPS 1⁄2 through NPS 8 is ±0.4 mm; for NPS 10 through NPS 24, ±0.8 mm.
Thickness
The gasket thickness tolerance is ±0.13 mm measured across the metallic portion of the gasket, not including the filler, which may protrude slightly beyond the metal.
Test Certificate
Manufacturer Test Certification En 3.1 and 3.2, IBR Test Certificate
