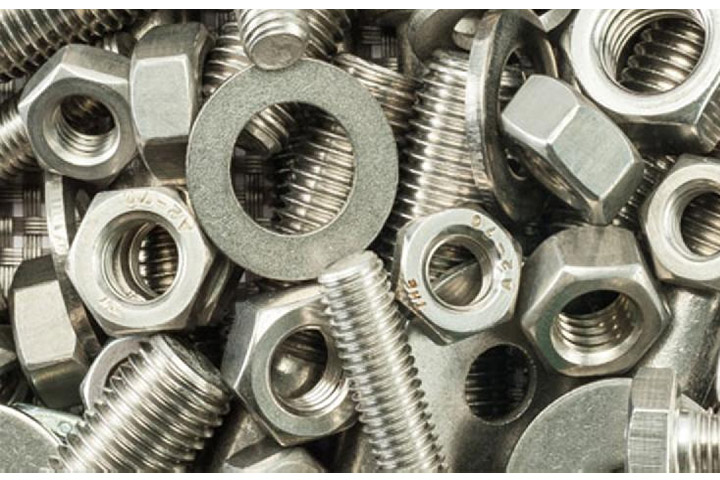

The grade is F51 and the dimensions range according to DIN 931, 912, 975 and so on. The fasteners come with different configurations such as ASME B1.1 2A/3a and so on. The Duplex Stainless Steel Washers can withstand high pressure, high temperature and high wear and tear with good corrosion resistance properties. The products can be cold forged, hot forged, bar stock machined or bar stock milling. The Duplex Stainless Steel Bolts can range from M6 to M100 and the length can range 10mm to 1000mm. The material has high melting point of 1350 degree Celsius. The Duplex Steel Stud Bolt material has carbon, manganese, silicon, phosphorus, sulfur, chromium, molybdenum, nickel, nitrogen and iron. The minimum tensile strength is 800MPa and 550MPa minimum yield strength. There are different types such as the Duplex 2205 Threaded Rod which is used as connection between two components without two nuts. As a leading supplier of the fasteners, please feel free to contact us for more information on the different types such as the Alloy 2205 Screws and their pricing.
| Specifications | ASTM A479 & ASME SA479 |
| Standard | DIN, ASTM, BS and all International Standards |
| Length | 3 to 200 MM |
| Duplex Steel Nut and Bolts Size | M3 To M56 3/6" to 2" |
| Duplex Steel 2205 Machine Screws Size | M1.6 To M12 |
| Duplex Steel 2205 Washers Size | M3 To M56 3/6" to 2" |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | Fe |
| S31803 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 22.0 – 23.0 | 3.0 – 3.5 | 4.50 – 6.50 | 0.14 – 0.20 | 63.72 min |
| S32205 | 0.030 max | 2.00 max | 1.00 max | 0.030 max | 0.020 max | 21.0 – 23.0 | 2.50 - 3.50 | 4.50 – 6.50 | 0.8 – 0.20 | 63.54 min |
| S31803 / S32205 | Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 7.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80000 , MPa – 550 | Psi – 116000 , MPa – 800 | 15 % |
| Duplex | Common Name | Related Specifications | ||
|---|---|---|---|---|
| European DIN | UNS | ASTM/ASME | ||
| Duplex Steel S31803/S32205 | SAF 2205® | 1.4462 | S31803/S32205 | F51/F60 |
