Carbon Steel Fasteners

Products

Material

download brochures

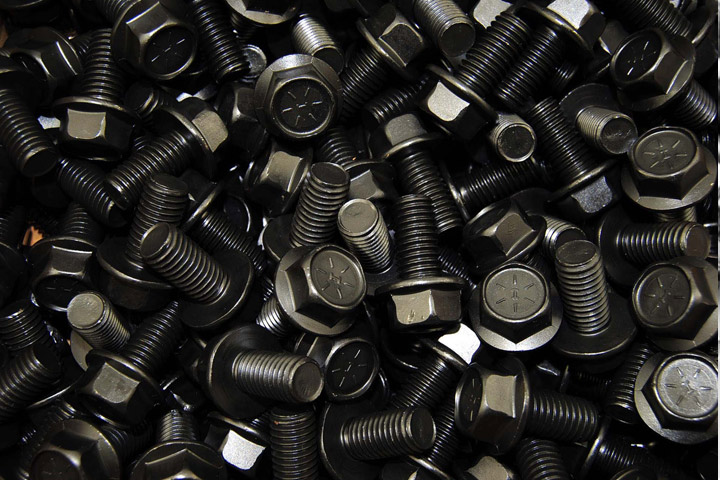

Carbon Steel Fasteners

Carbon Steel Washers Exporter, ASTM A194 Gr 2H Fasteners, Carbon Steel Screws, ASTM A307 Carbon Steel Studs, CS High Tensile Fasteners, Carbon Steel Stud Bolt, Carbon Steel Spring Washers, ASTM A563 Carbon Steel Nuts, ASTM A194 Grade 2HM Fasteners, Carbon Steel Anchor Bolts, ASTM A193 GR B7 Bolts Manufacturer in India.

Carbon Steel Fasteners are available in different coatings like mirror buffed, chrome plating, hot-dip galvanizing, zinc plating. Also, the other coatings are epoxy coating, oxidized, passivation, Teflon coating, and electro-polished. Carbon Steel is the age-hardening martensitic precipitation SS. It is having very good hardness and high strength. It is having very good resistance ability to both stress corrosion cracking as well as general corrosion. This material is exhibiting excellent toughness and very good ductility in the bigger sections in transverse and longitudinal directions.


Carbon Steel Fasteners Application Industries
Our Carbon Steel Fasteners are used in a wide range of applications and various industries. Below are a few of them:
  • ☆ Petrochemical Industry
  • ☆ Oil and Gas Industry
  • ☆ Chemical Industry
  • ☆ Power Plant Industry
  • ☆ Energy Industry
  • ☆ Pharmaceuticals Industry
  • ☆ Pulp & Paper Indusry
  • ☆ Food Processing Industry
  • ☆ Aerospace Industry
  • ☆ Refining Industry

Standard Specification of Carbon Steel Fasteners

Carbon Steel Fasteners Standard ASTM / ASME A/SA 193 / 194
Sizes of Carbon Steel Ball Head Bolt ¼ to 4 Inch
Length 5 M
Specification IS, BS, ASTM



High Temperature carbon Steel Fasteners

Specific size are available in Low Temperature Carbon Steel Self Tapping Screws at dealer price in India, Check Carbon Steel Wood Screws Dimension Chart
Grade Name Werkstoff Number ASTM BS Temperature Use
25CrMo4 – 1.7218 – – Up to 400ºC
Durehete 950 T31 40CrMoV4.6 1.7711 ASTM A193 B16 BS1506 671-850 Up to 510ºC
Durehete 1055 20CrMoVTiB4.10 1.7729 – BS1506 681-820 Up to 570ºC
Durehete 900 T22 42CrMo5.6 1.7233 – BS1506 631-850 Up to 480ºC
21CrMoV5.7 – 1.7709 – – Up to 540ºC
42CrMo4 – 1.7225 ASTM A193 B7 BS1506 630-860 Up to 450ºC

Carbon Steel Hex Bolt Chemical Composition

Buy High-Grade Quality from Carbon Steel Hex Nuts Suppliers, view Carbon Steel Heavy Hex Nuts Chemical Compostion, Check Carbon Steel Screws Price list
BS 970: 1955 Chemical Composition
Carbon Silicon Manganese Nickel Chromium Molybdenum sulphur Phosphorus
EN3B 0.25Max 0.35Max 1.0Max – – – 0.06Max 0.06Max
EN1A 0.07/0.15 0.10Max. 0.80/1.20 – – – 0.20/0.30 0.07Max
EN8 0.35/0.45 0.05/0.35 0.60/1.00 – – – 0.06Max 0.06Max
EN9 0.50/0.60 0.05/0.35 0.50/0.80 – – – 0.06Max 0.06Max
EN16 0.30/0.40 0.10/0.35 1.30/1.80 – – 0.20/0.35 0.05Max 0.05Max
EN19 0.35/0.45 0.10/0.35 0.50/0.80 – 0.90/1.50 0.20/0.40 0.05Max 0.05Max
EN24 0.35/0.45 0.10/0.35 0.45/0.70 1.30/1.80 0.90/1.40 0.20/0.35 0.05Max 0.05Max



Bolt Types


Nuts Types



Washer Type



Plain OR Flat Washer
Spring Washers
Dome Washer
Hexagonal Washer
Square Washer
Dome Tooth Washer
Countersunk Washer
Tooth Lock Washer
Dock Washer
Fender Washer
Ogee Washer
Hex Washers
Split OR Lock Washer
Customized Washer
Tab Washers



General Queries While Buying Fasteners



  • ☆ High rejection rate
  • ☆ No control on quality and testing
  • ☆ Non availability
  • ☆ Late deliveries
  • ☆ Poor packaging/ Unprofessional Packing
  • ☆ Poor after sales service
  • ☆ Supply of wrong grades
  • ☆ Material inconsistent with ASTM Standards
  • ☆ Very hard material for use
  • ☆ Poor surface finish
  • ☆ No Mill test report
  • ☆ Dubious Practices
  • ☆ Lack of knowledge
  • ☆ Product fails under high pressure
  • ☆ High pricing of the goods due to supplier commission





Why Choose Alinox Steel. While Buying Fasteners?



  • ☆ High pressure sustainability
  • ☆ Impeccable surface finish
  • ☆ Product replacement warranty
  • ☆ After sales support and service
  • ☆ World class buying experience
  • ☆ Very quick delivery
  • ☆ Mill test report/ Digital Mill test report in accordance with EN10204 NACE 3.1, NACE 3.2
  • ☆ 3rd Party inspection
  • ☆ Government and Private Laboratory Testing
  • ☆ Test certificate from ISO 17025 Standards Laboratory
  • ☆ Same day shipping of the goods
  • ☆ Highest stock in the country
  • ☆ Stringent Quality Testing and Control
